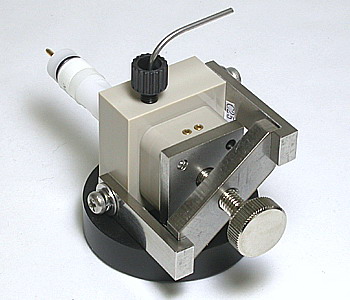

Cross Flow Cell

Cross Flow Cell is capable of quantitation at the level of 10-15 mol by the flow rate: 1 mL/min - 100 L/min.

Click to detail Click to detail
Note: Working electrode, reference electrode and gasket are sold separately.




Flow schematic digram for Cross flow cell



Features
Detection electrode for HPLC
Electrode for flow injection
Electrode for bio-sensor development












Catalog No. Description
012798 Cross flow cell
Catalog No. Description Size
Working electrode
001000 Glassy Carbon Electrode dia. 3 mm x 2 (dual type),
Size: 25 x 25 mm
001002 Gold Electrode
001012 Platinum Electrode
001008 Silver Electrode
001004 Carbon Paste Electrode
001009 Nickel Electrode
001006 Glassy Carbon/Gold Electrode
012583 Glassy Carbon/Platinum Electrode
Reference electrode
012169 RE-3V Reference electrode
012170 RE-3VP Reference electrode
012173 RE-7V Non Aqueous reference electrode
012174 RE-7VP Non Aqueous reference electrode
Gasket
001046 TG-2M Teflon Gasket 12 m; 4 pcs
001047 TG-5M Teflon Gasket 25 m; 4 pcs
001048 TG-6M Teflon Gasket 50 m; 4 pcs
012801 TG-8M Teflon Gasket 100 m; 4 pcs
001092 TG-11M Silicon Gasket 500 m; 4 pcs
001093 TG-12M Silicon Gasket 1000 m; 4 pcs




Cross flow cell contents
Item Material Quantity
Cross Flow cell block PEEK *2 1
Flow cell base block POM 1
Screw for base block SUS *3 2
Flow cell arm SUS 2
Screw for arm SUS 2
Working Electrode connector brass 1
Hand screw for clamp SUS 1
Stainless plate for clamp SUS 1
Clamped plate SUS 1
Teflon tube ETFE 30 cm
80 cm
Silicon tube Si 2 cm
28 cm
Stainless pipe 5 cm SUS 1
Dynaseal PEEK fingertight PEEK 3
*1 Polyacetal resin *2 Polyether-ether-ketone *3 Stainless Used Steel
